Equipement

setup

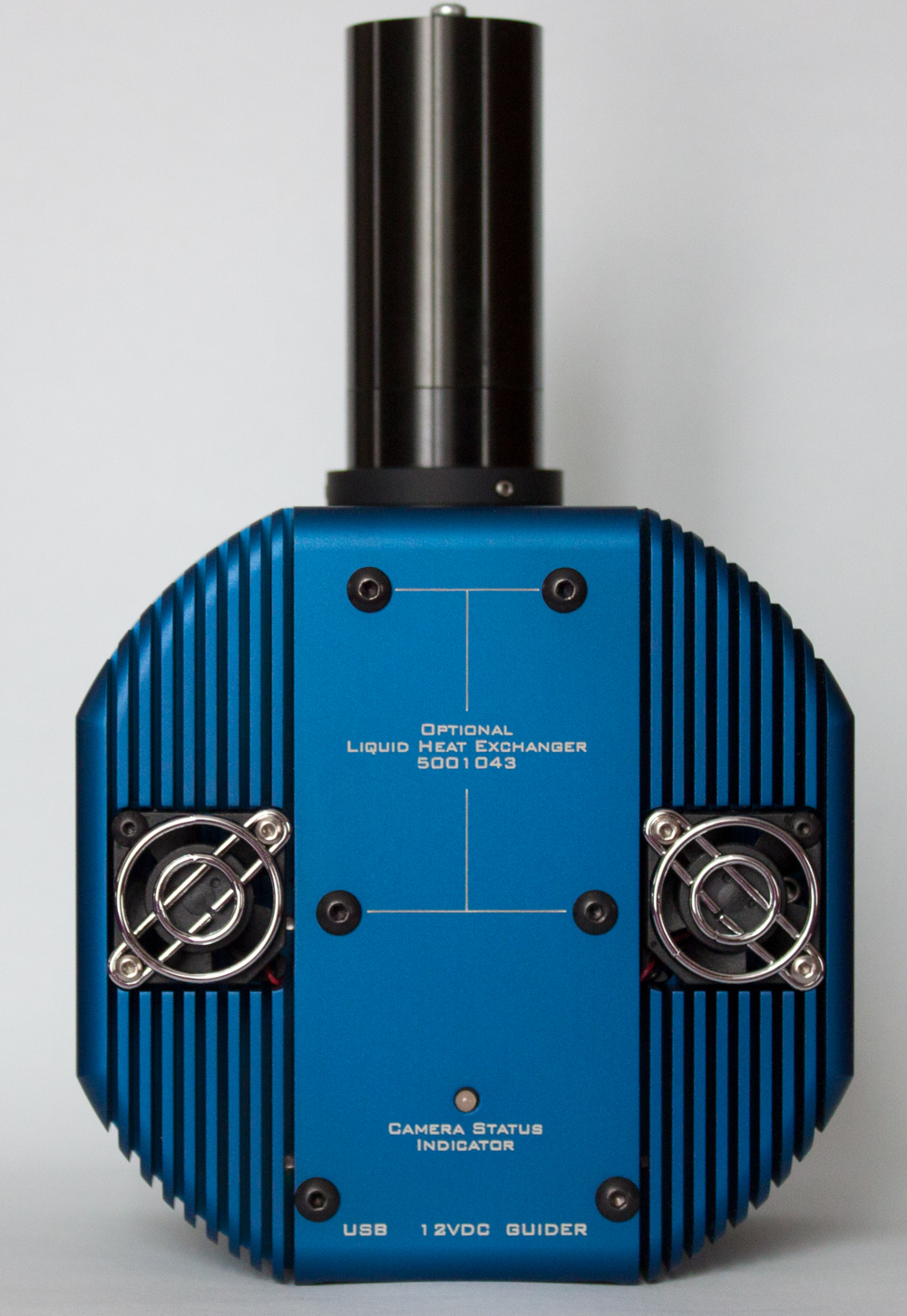

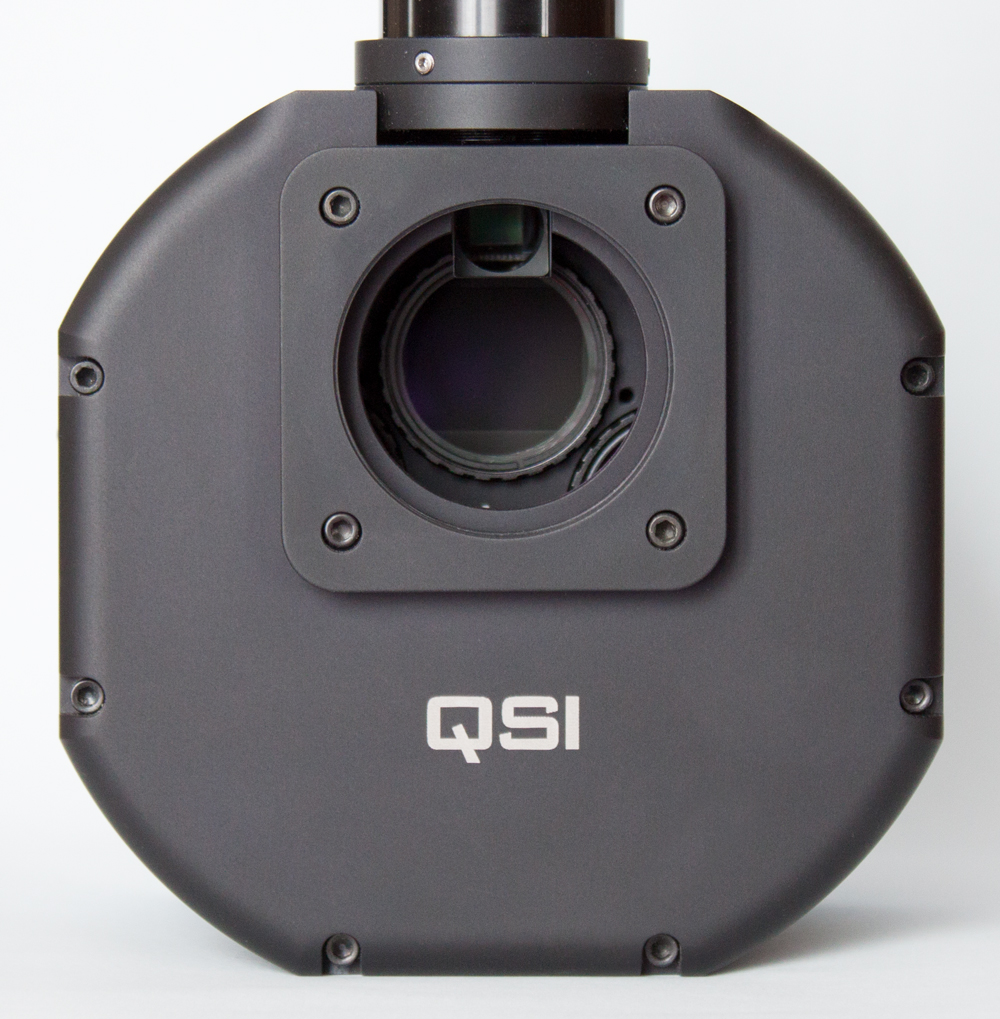

CCD Camera :

QSI583wsg

  • Sensor : Kodak KAF8300
  • Pixel array : 3326 x 2504 (8,3Mpx)
  • Pixel size : 5,4µm
  • Sensor size : 17,96 x 13,52mm
  • ReadOut Noise : 8eRMS (6,77e-RMS measured)
  • Gain : 0,5 ou 1,1 e-/ADU
  • Full Well Capacity : 25500 e-

Used with Baader LRVB; Ha;OIII Filters



SX Lodestar

sx

  • Sensor : Sony ICX429 AL
  • Pixel Array : 752 x 580 (436k)
  • Pixel Size : 8,2x8,4µm
  • Sensor size: 6,4 x 4,75mm
  • ReadOut Noise : 10eRMS
  • Gain : 0,9 e-/ADU

High sensitivity camera, perfect for off-axisguiding application.

lodestar





Optic :

Newton Orion Optics CT10

  • Aperture : 250mm
  • Focal : 1200mm (1320mm with Paracorr)
  • F/D : 4,8 (5,3 with Paracorr)



Mount :

Losmandy G11, Gemini II

losmandy

  • Measured periodic error : +/-12"
  • Residual error with autoguiding : +/-0,3"

g11
